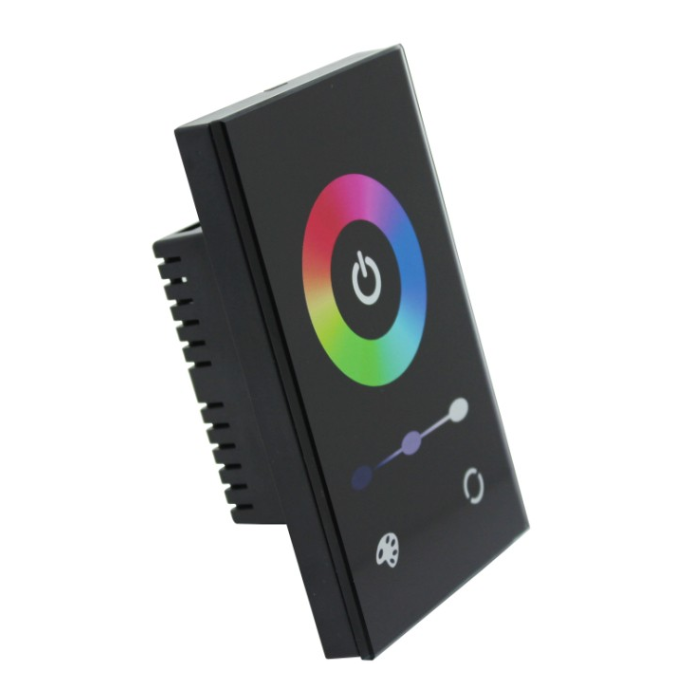

TM08U Low Voltage Touch Panel DC 12-24V 3 Channels Leynew LED Controller,Pls noted, this TM08U controller
is also named TM3003.
Summarization
Touch panel controller is a new high-end dimmer which newly developed by our company. It adopts glass
panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control
chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety
of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has
many advantages such as convenient to connect, easy to use and others.
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: DC12-24V
Output voltage: DC12-24V
Output: 3 channels
Connection mode: common anode
External dimension: L74 Χ W120 Χ H41.8mm
Packing size: L150Χ W100 Χ H57 mm
Net weight: 155g
Gross weight: 217g
Color:Pls Choose : White or Black
Static power consumption: <1W
Output current: <4A (each channel)
Output power: 12V<144W, 24V<288W
Package Include:
1 Piece of TM08U Low Voltage Touch Panel DC 12-24V 3 Channels Leynew LED Controller
1 Piece of Product Manual
CE and RoHS approved
