We supply high quality Skydance Led products to worldwide for many years.
Skydance's products are widely used in various dimming projects such as buildings, hotels,
offices, museums, public spaces, outdoor lighting, etc.
These projects include lighting control functions such as dimming, color tempering, adjusting RGB,
adjusting RGBW, zoning and networking, and scene storage, among others.
They have been used in prominent projects, such as China Central Television (CCTV) Headquarters,
Lausanne Opera House, Guangzhou West Tower, Guangzhou Cultural Oriental, and Macau Galaxy Hotel , to name a few.
We have helped our customers control smart lights, maximize energy use, drive overall efficiency and deliver new experiences.
Feature

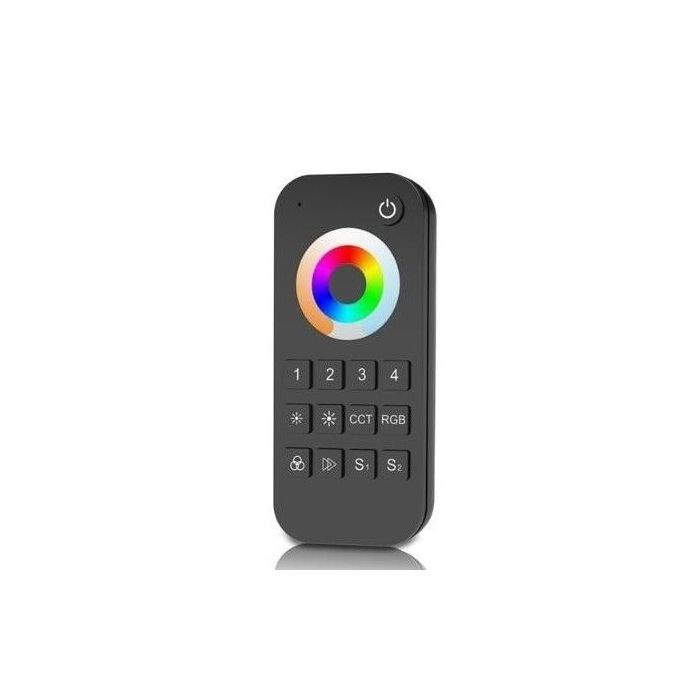

Apply to single color, dual color, RGB,RGBW or RGB+WW/CW LED controller, dimming driver or smart lamp.
Ultra sensitive color adjustment touch wheel.
Adopt 2.4GHz wireless technology, remote distance up to 30m.
Each remote can match one or more receiver.
Battery powered (2 x AAA).
Operate with LED indicator light
Technical parameter
Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAA*2pcs)
Working current: ＜5mA
Standby current: ＜10μA
Standby time: 2 years
Remote distance: 30m
Working temperature: -30℃~55℃
Dimension: L122×W53×H17.5mm
Weight: 60g
Operation
When turn on light, the indicator display blue. when turn off light, the indicator display red.
When touch the color wheel, the indicator will display the same color.
When press or touch operation is invalid (If the light is off), the indicator display red.
To extend battery life, no touch or press key operation after a few seconds,the touch
wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
Match guide
Remote match with 2.4G RF controller, dimming driver or smart lamp. there are two kinds of method to match receivers
Match with controller(with match key)
Match: Short press match key, within 5s, press zone key of the remote.
Delete: Long press match key for 5s, delete all matched remote
Match with controller(without match key), dimming driver or smart lamp
Match: Switch off the power, then switch on power again,short press zone key 3
times on the remote quickly within 5s after power on,the link is done once the light blinks 3 times.
Delete: Switch off the power, then switch on power again,short press zone key 5
times on the remote quickly within 5s after power on,the unlink is done once the light blinks 5 times.
Package Content:
CE and RoHS approved
