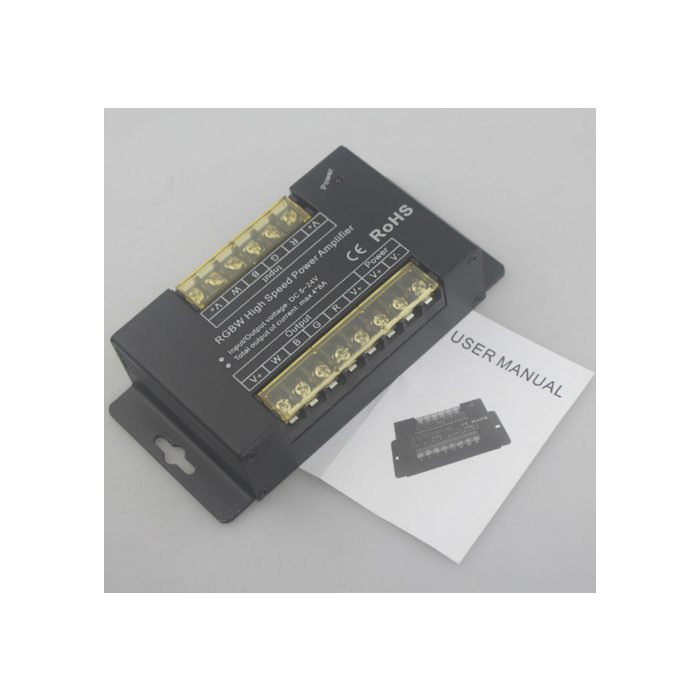

High Speed RGBW LED Amplifier DC5V-24V 8A 4Channel
Summarization:
power LED lamps and lanterns unified control. Whether our company's products or any other company's
products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier.
Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade,
it can keep pace with host.
Technical parameters:
Working temperature: -20-60 degree
Working voltage: DC5V-24V
Signal voltage: DC5V-24V
Input signal: PWM dimming signal
Dimming range: 0.1%-100%
Net weight: 270g
Gross weight: 310g
External dimension: L147mm*W70mm*H34mm
Packing size: L152* W75* H75mm
Connect terminal: screw connect mode, terminal caliber 7mm
Connect mode: common anode
Output current: <32A
Output power: 5V:<160W, 24V:<768W
Package include:
1 Piece of High Speed RGBW LED Amplifier DC5V-24V 8A 4Channel
CE and RoHS approved
