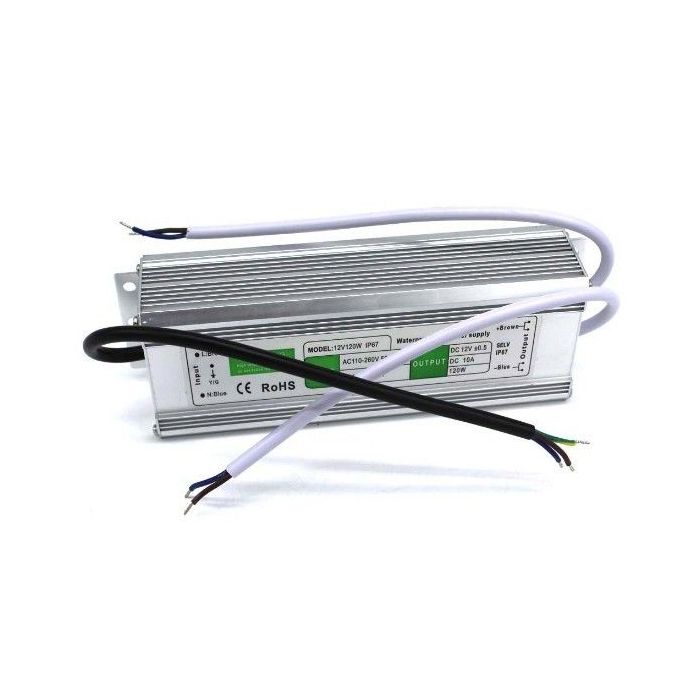

12V 120W Waterproof Switching Power Supply AC to DC Converter Driver Transformer
Description:
Output:
DC Voltage: 12V +/- 3%
Rated Current: 10.0A
Rated Power: 120W
Ripple & Noise (max): mVp-p < 1% Uout
Load Regulation: +/- 1%
Setup Time: 500ms
Rise Time: 20ms
Hold UP Time: 30ms @ 230V, 10ms @ 115V
Input:
Frequency Range: 50/60Hz
Voltage Range: AC 110-260V
Efficency: >83%
AC current (max): 1.2A @ 220V, 2.3A @ 115V
AC Inrush Current: 40A @ 230V
Environment:
Working Temperature: -20~50C
Working Humidity: 20%~90% RH
Storage Temperature: -40~60C
Storage Humidity: 20%~95% RH
Protection:
Short Circuit Protection
Overload Protection: 130~150%
Over Voltage Protection: 115~135%
Safety Standard: meet CE, RoHS
Waterproof Rank: > IP67
Dimension: approx 210x 70 x 40mm
Package Include:
1 Piece of 12V 120W Waterproof Switching Power Supply AC to DC Converter Driver Transformer
CE and RoHS approved
